Ultrawave Qi-400

Ultrawave’s new Qi-Series combines the highest quality design with advanced Frequency Leap technology for excellent ultrasonic cleaning performance. Designed to be used in a wide range of industries, from precision pharmaceutical and medical device manufacturing to heavy duty cleaning in automotive and engineering processing.

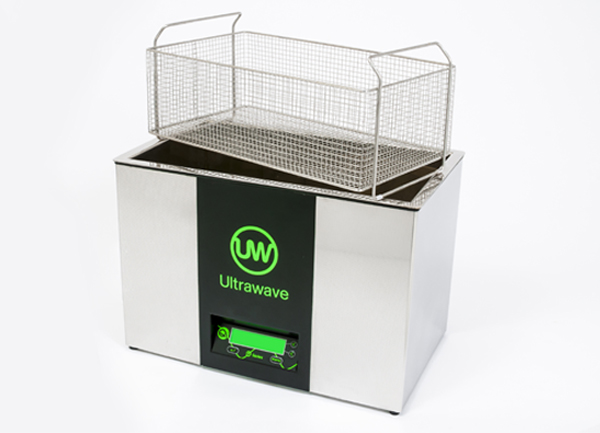

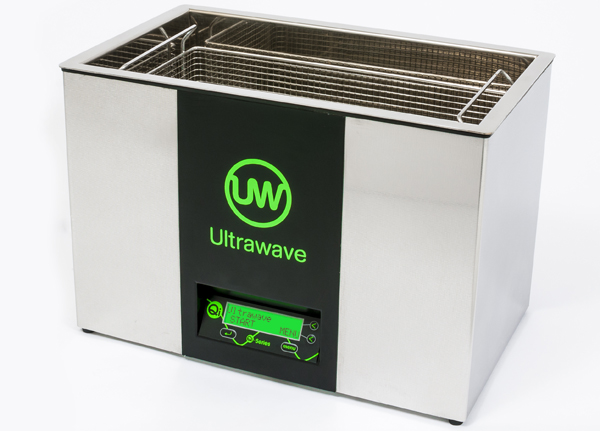

The Qi-400 is a 30L heated ultrasonic cleaner, incorporating a digital control panel for easy and accurate process control with a 2mm thick stainless steel tank for extra durability. Supplied complete with a stainless steel lid and basket, the Qi-Series are effective and reliable giving you outstanding cleaning results time after time.

For the best results, use an Ultrawave cleaning detergent specially formulated for ultrasonic cleaning.

Specifications

External Tank Dimensions

580 x 460 x 420mm (W x D x H)

Internal Tank Dimensions

485 x 275 x 220mm

Basket Dimensions

455 x 250 x 140mm

Capacity

30Litres

Construction

2mm thick 316 stainless steel tank

Control

Digital control
Time (0 to 99 minutes or Infinity mode)
Temperature (Ambient to 80°)

Operating Features

Frequency Leap Technology
Degas mode
Fluid level protection
Lockable drain valve

Ultrasonic Power

400W

Operating Frequency

30 to 40kHz

Heating Power

1350W

Required Services

13 Amp, standard 3 pin socket

* Note angled basket handles reduce width dimensions by 25mm on each end.

Download product information
