Ultrawave Qi-300

Ultrawave Qi-300

Ultrawave’s new Qi-Series combines the highest quality design with advanced Frequency Leap technology for excellent ultrasonic cleaning performance. Designed to be used in a wide range of industries, from precision pharmaceutical and medical device manufacturing to heavy duty cleaning in automotive and engineering processing.

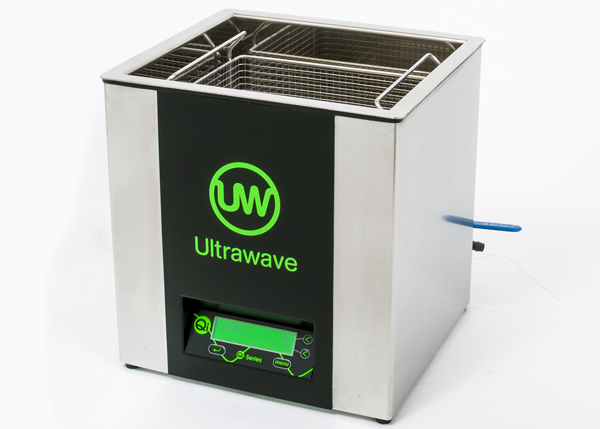

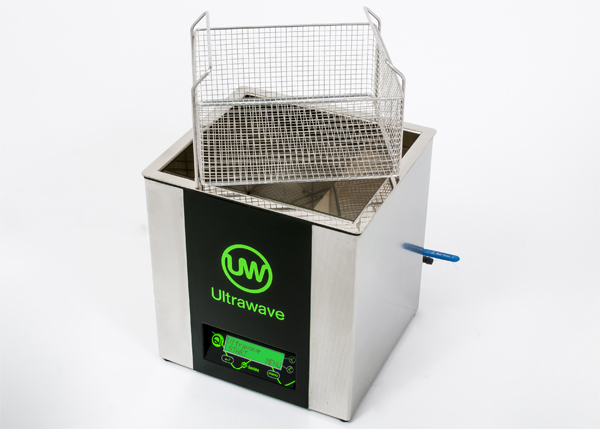

The Qi-300 is a 17L heated ultrasonic cleaner, incorporating a digital control panel for easy and accurate process control with a 2mm thick stainless steel tank for extra durability. Supplied complete with a stainless steel lid and basket, the Qi-Series are effective and reliable giving you outstanding cleaning results time after time.

For the best results, use an Ultrawave cleaning detergent specially formulated for ultrasonic cleaning.

Specifications

External Tank Dimensions

• 400 x 460 x 420mm (W x D x H)

Internal Tank Dimensions

• 305 x 275 x 200mm

Basket Dimensions

• 275 x 250 x 125mm*
^*

Capacity

• 17Litres

Construction

• 2mm thick 316 stainless steel tank

Control

• Digital control
• Time (0 to 99 minutes or Infinity mode)
• Temperature (Ambient to 80°)

Operating Features

• Frequency Leap Technology
• Degas mode
• Fluid level protection
• Lockable drain valve

Ultrasonic Power

• 300W

Operating Frequency

• 30 to 40kHz

Heating Power

• 750W

Required Services

• 13 Amp, standard 3 pin socket

* Note angled basket handles reduce width dimensions by 25mm on each end.
