BMM Weston Series 5

Series 5

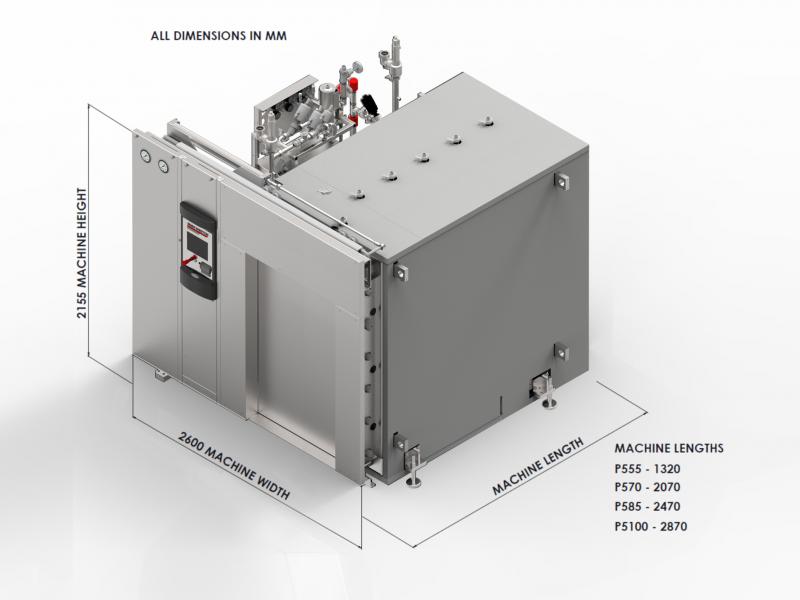

Large capacity | Chamber volume 1660-2870 litre | Horizontal sliding door

The BMM Weston Series 5 is our second tier large pit mounted floor loading sterilizer; the large capacity unit allows great throughput processing large volumes of work.

Chamber capacities ranging from 1660 to 2870 litres, the Series 5 offers everything you need together with simplicity of operation and intuitive control. Combining functionality with high specification and premium UK engineering synonymous with BMM Weston, the Series 5 is the choice for demanding high throughput levels of work.

Series 5 Sterilizers
The Series 5 is designed to deliver maximum processing efficiency with minimum fuss. Finding the correct sterilizer for your application is crucial; performance, ease of use and reliability are essential for sustaining maximum productivity – the Series 5 Range of sterilizers has it all.

Application and programs
Instruments, textiles, rubbers and tubes
Operating programs at 121°C and 134°C
Bowie & dick, leak rate test, helix test
Self-diagnostic leak test
Factory programmed to EN 285
Cycles can be configured from a series of discrete stages

Machine Features

• Chamber and jacket in stainless steel 1.4404 / 316L (1.4571 / 316TI available)
• Full jacket and chamber surface heating
• Process pipework in stainless steel
• Air detection monitoring
• Control panel can be mounted either left or right hand side of machine
• Efficient heat exchanger and quiet double-stage vacuum pump
• Automatic powered vertical sliding door
• Pressurised door sealing system
• Energy saving mode
• Microprocessor control
• Multi-level user control
• Control data download and backup facility
• Fully panelled fascia
• Chamber fixing positions for carriages or shelves
• Height adjustable feet
• Castors for easy positioning & installation
• ISO 13485 and ISO 9001 compliant
• UK manufactured

User Comfort

• Ergonomic working height and loading position
• 10.4” full-colour touch-screen control
• Intuitive menu navigation
• One-touch cycle start

Options

• Available as pass-through (2 door)
• Cycle data printer
• Front-mounted power sockets
• Full cabinet panels
• Polished vessel and door
• Barrier Seal (SPF air tight barrier)
• Integral steam generator (Steam heated)
• Integral steam generator (Electrically heated)
• Steam filter system
• Steam sampling
• Water conservation system
• Chilled water recovery system
• Drain cooling system
• Independent monitoring
• Traceability system compliant

Accessories

• Loading equipment
• Baskets, trays and containers
• Pass-through systems
• Steam generation systems
• Water purification systems
• Cycle data archiving
• Air compressor
• Bar code reader system
• Remote keypad

UK Manufacture – Standard Compliant
As with all BMM Weston sterilizers - quality is at the heart of what we do; UK Manufacturing is our strength and ensures the highest level of quality in both materials and workmanship.

Operating to ISO 13485 & ISO 9001 BMM Weston sterilizers comply.

Download product information
